Plan Description

Enter the formal foyer of this home and you are greeted with a traditional split living room/dining room layout. But the family room is where the real living takes place. It expands onto the outdoor living space, which features a summer kitchen. The ultimate master suite contains coffered ceilings, a "boomerang" vanity, and angular mirrors that reflect the bayed soaking tub and shower. Efficient use of space creates a huge closet with little dead center space.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 76'

Height : 24'

Width : 70'

Area

First Floor: 2962 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Fireplace

Formal Dining Room

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

Rooms

Bathroom 2:

80 sq/ft width 10' 4" x depth 7' 10"

Bathroom 3:

67 sq/ft width 8' 8" x depth 7' 10"

Bedroom 2 closet:

width 10' 8" x depth 2' 4"

Bedroom 3 closet:

width 8' 10" x depth 2' 4"

Bedroom 4 closet:

width 5' x depth 2' 4"

Breakfast:

99 sq/ft width 11' 8" x depth 8' 6"

Covered patio:

width 32' 4" x depth 15' 8"

Garage:

686 sq/ft width 21' x depth 32' 8"

Kitchen:

189 sq/ft width 14' x depth 13' 6"

Master Bathroom:

175 sq/ft width 17' x depth 10' 4"

Master shower:

width 3' 4" x depth 4'

Master WIC:

width 13' x depth 5' 10"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

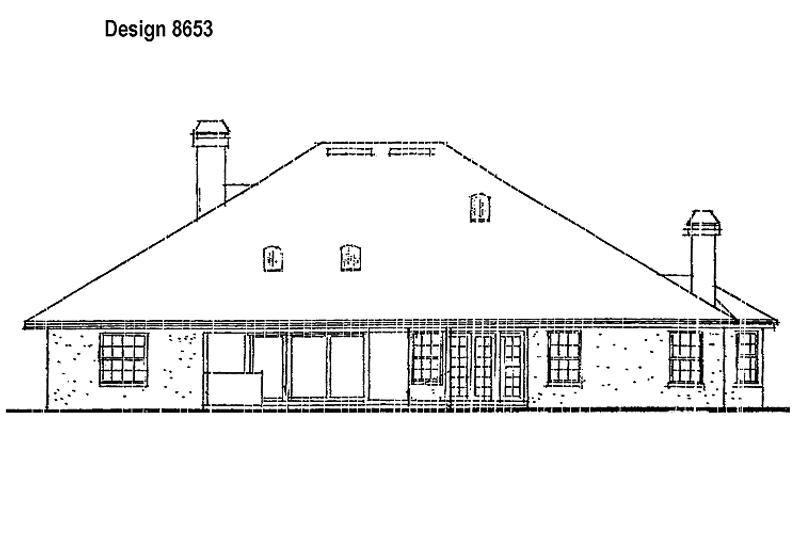

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

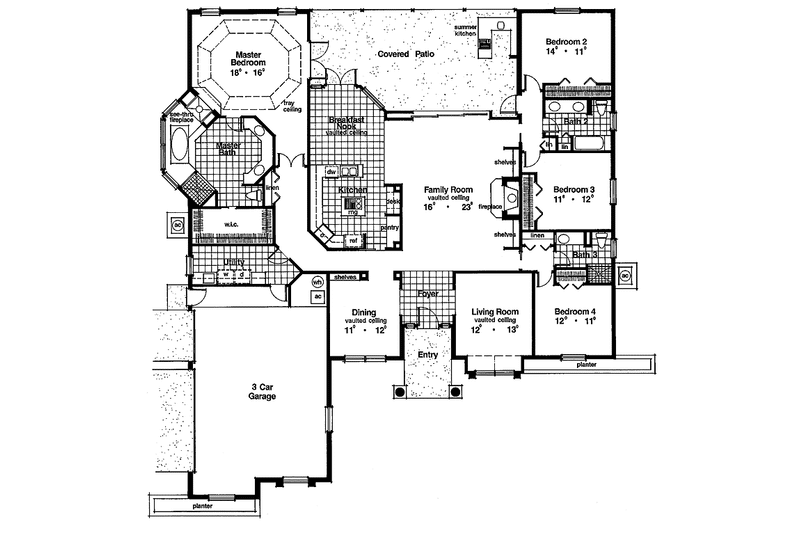

Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-803-2251

Plan Set

PDF Set:
$920.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1080.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1200.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build:
$1840.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$560.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$40.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$80.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$68.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$24.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
