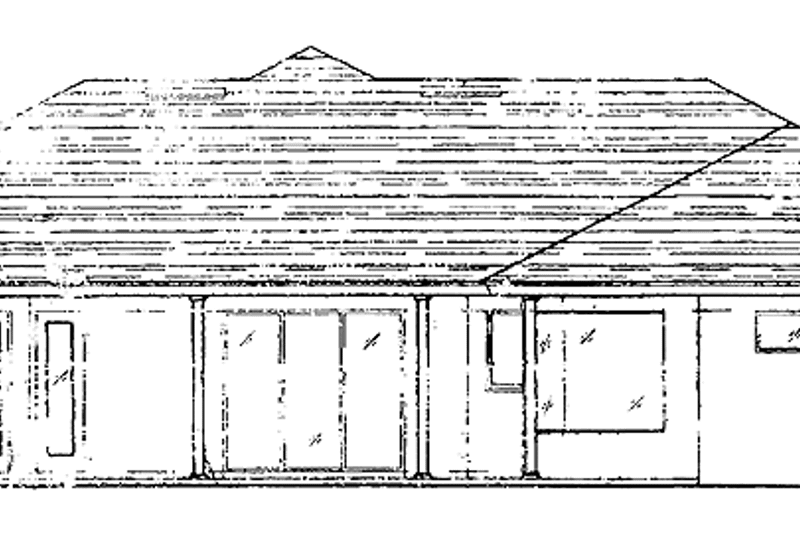

House Design - Mediterranean Exterior - Rear Elevation Plan #417-645

House Design - Mediterranean Floor Plan - Main Floor Plan #417-645

Jump to:
All (3)
Exterior (2)
Floor plans (1)

Get Personalized Help Get Cost To Build Report Modify This Plan

Home > Style > Mediterranean House Plans

Key Specs

2362
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$40.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$80.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$68.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$24.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $840.00

You save $210.00 (20% savings)

Sale ends soon!

Also order by phone: 1-877-803-2251

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-803-2251

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 417-645

Home > Style > Mediterranean House Plans

Key Specs

2362
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.

Modify This Plan

Plan Description

The grand entrance and elevation is only the beginning in this well-balanced home. The foyer is centered with the formal living room, with a wall of glass through which to view the outdoor living space. Traffic areas, tiled in marble, add graciousness and practicality as you walk thorugh the home. The master wing has a convenient and versatile den/guest/library adjacent to the master suite entry and poolside bath. The perfectly balanced master bath has a beautiful bay window framing the soaking tub, with matching spaces for the shower and toilet chamber, matching vanities, and walk-in closets.

Floor Plans

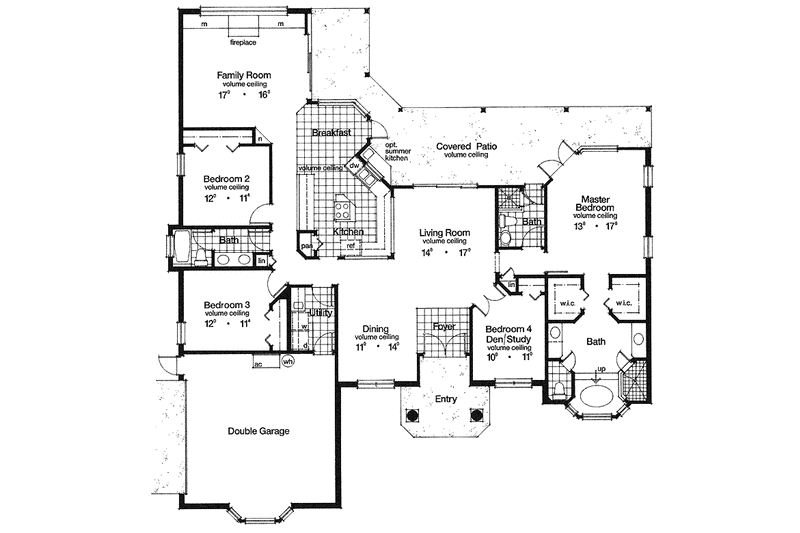

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 73' 4"

Height : 20'

Width : 65' 8"

Area

First Floor: 2362 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Fireplace

Split Bedrooms

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Family Room Keeping Room

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Outdoor Kitchen Grill

Rooms

Bathroom 2:

71 sq/ft width 13' 6" x depth 5' 4"

Bedroom 2:

135 sq/ft width 12' x depth 11' 4"

Bedroom 3:

135 sq/ft width 12' x depth 11' 4"

Bedroom 4:

110 sq/ft width 10' x depth 11'

Breakfast Room:

96 sq/ft width 9' 8" x depth 10'

Dining Room:

154 sq/ft width 11' x depth 14'

Foyer:

40 sq/ft width 7' 8" x depth 5' 4"

Garage:

465 sq/ft width 21' x depth 22' 2"

Hall Bathroom:

53 sq/ft width 6' 2" x depth 8' 8"

Kitchen:

147 sq/ft width 12' 8" x depth 11' 8"

Living Room:

249 sq/ft width 14' 8" x depth 17'

Master Bathroom:

145 sq/ft width 13' 8" x depth 10' 8"

Master Bedroom:

241 sq/ft width 13' 8" x depth 17' 8"

Utility Room:

56 sq/ft width 6' 2" x depth 9' 2"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-803-2251

Plan Set

PDF Set:
$840.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1000.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1120.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build:
$1680.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$480.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$40.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$80.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$68.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$24.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
