Plan Description
Decorative stucco touches, an impressive entry and muntin windows grace the
exterior of this home. Step inside and you will find that the open living space
makes this compact home appear larger than it actually is. The living room
flows easily into the dining room both boast volume ceilings. The galley
kitchen looks over to the dining room, making it perfect for serving guests. A
patio or optional screened porch is accessed from the dining area. The master
bath is located to the rear of the plan, away from street traffic, and sports a
full bath. Bedrooms 2 and 3 share a full bath.
Floor Plans

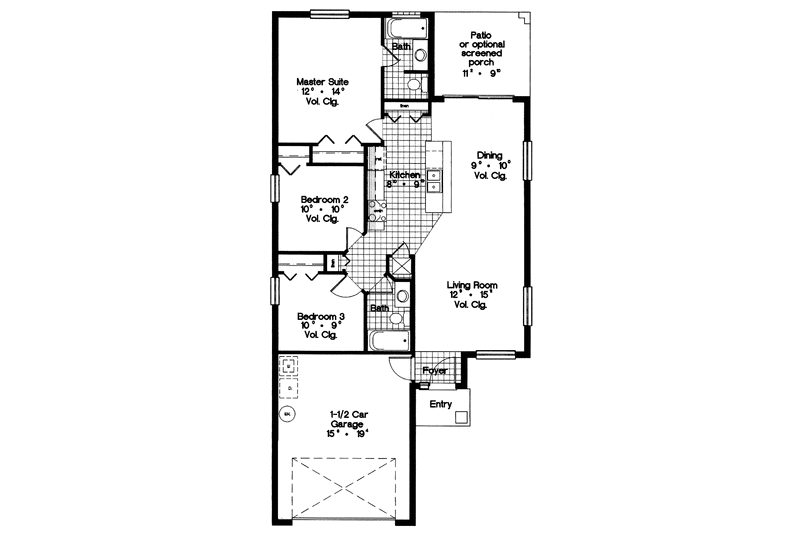

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 60'
Height : 15'
Width : 30'
Area
First Floor: 1118 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Kitchen Features
Walk In Pantry Cabinet Pantry
Additional Room Features
Storage Area
Sunroom
Outdoor Spaces
Courtyard
Screened Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
