PLAN 47-653
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.

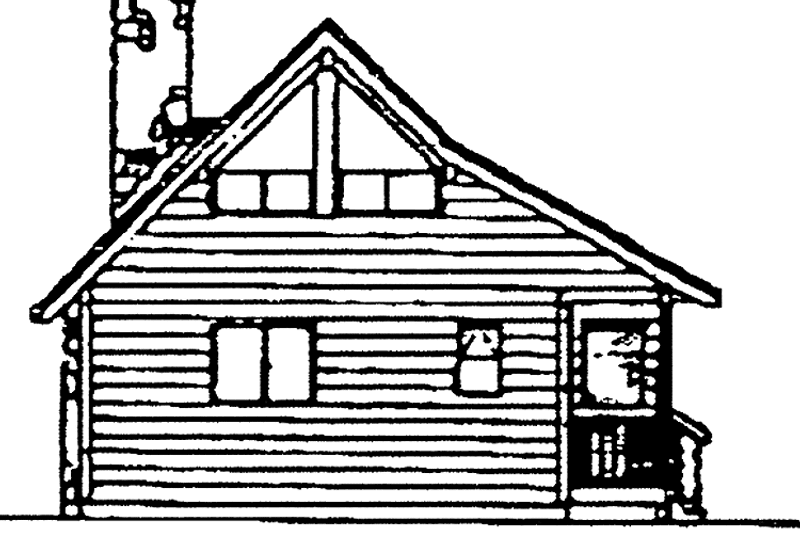

Plan Description
Full window walls provide the living and dining rooms of this rustic
vacation home with natural light. A full sundeck with a built-in barbecue sits
just outside the living area and is entered through sliding glass doors. The entire
living space has a vaulted ceiling to gain spaciousness and to allow for
the full-height windows. The efficient U-shaped kitchen has a pass-through
counter to the dining area and a corner sink with windows overhead. A master
bedroom is on the first floor and has the use of a full bath. A loft on the
second floor overlooks the living room. It provides an additional 419 square
feet not included in the total. Use it for an additional bedroom or as a
studio.
Floor Plans

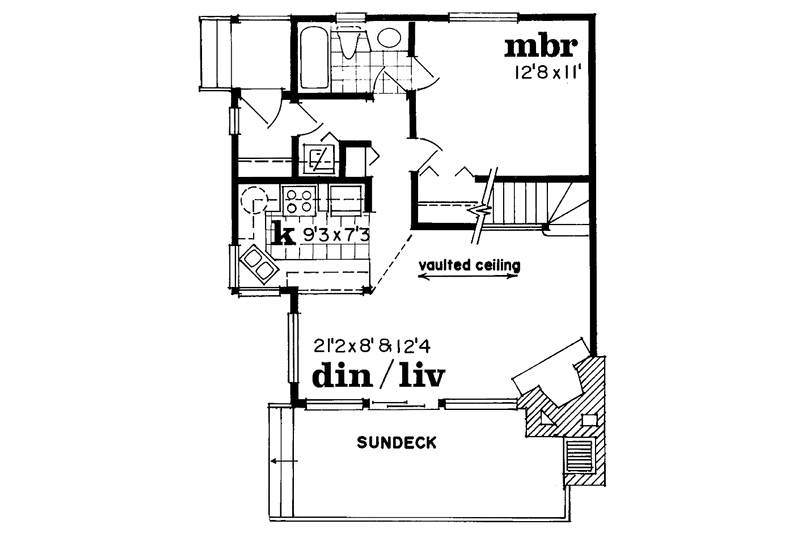

Floor Plan - Main Floor

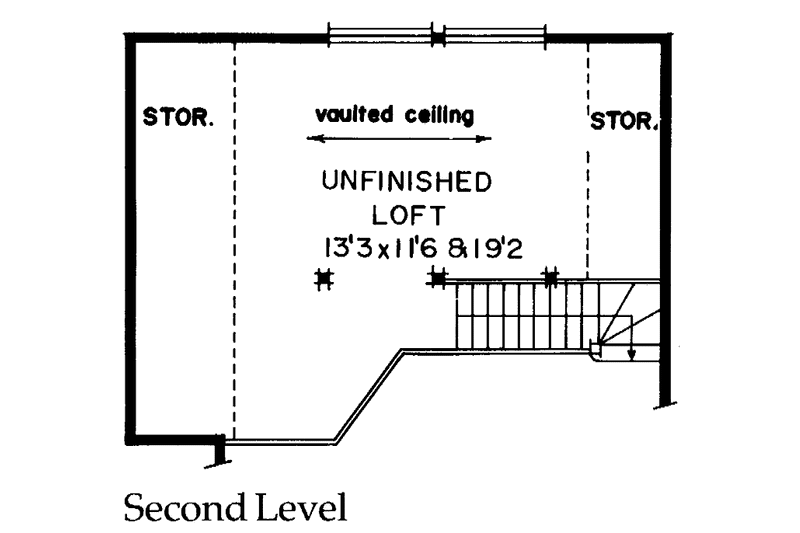

Floor Plan - Upper Floor

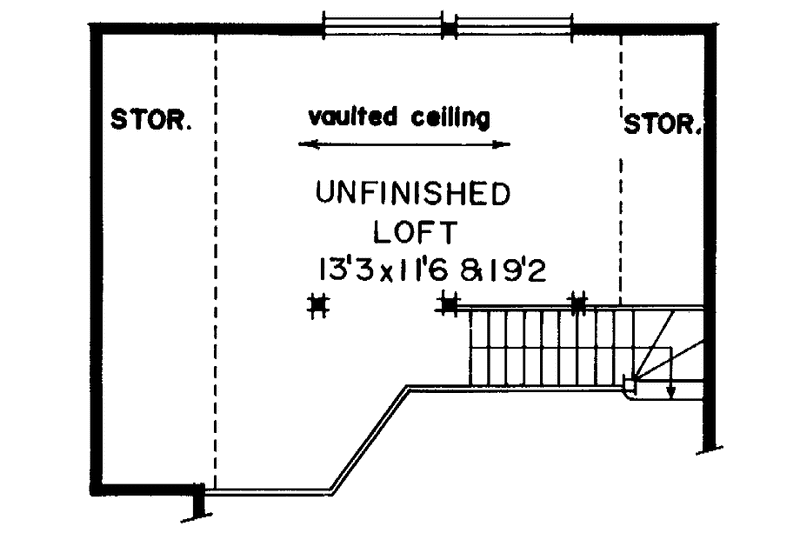

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 28'
Height : 22'
Width : 26' 6"
Area
Bonus: 419 sq/ft
First Floor: 680 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Crawlspace Foundation:
742 sq/ft width 28' x depth 26' 6"
Deck:
157 sq/ft width 8' x depth 19' 8"
Hall Bathroom:
43 sq/ft width 5' x depth 8' 9"
Hall Closet:
7 sq/ft width 2' x depth 3' 8"
Kitchen:
67 sq/ft width 7' 3" x depth 9' 3"
Master Bedroom:
139 sq/ft width 11' x depth 12' 8"
Master Closet:
15 sq/ft width 3' x depth 5'
Porch - Rear:
21 sq/ft width 5' 4" x depth 4'
Utility Room:
17 sq/ft width 5' 11" x depth 3'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-877-803-2251
