Plan Description

This colonial design floor plan is 462 sq ft and has 0 bedrooms and 0.5 bathrooms.

Floor Plans

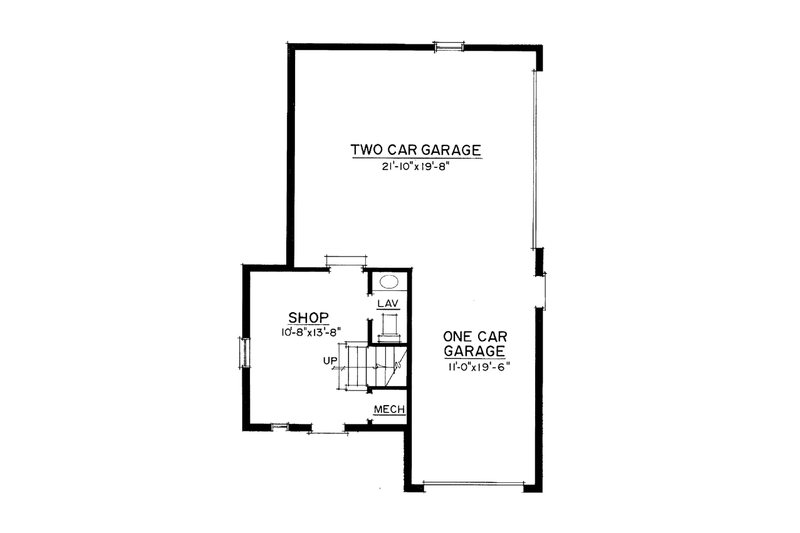

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

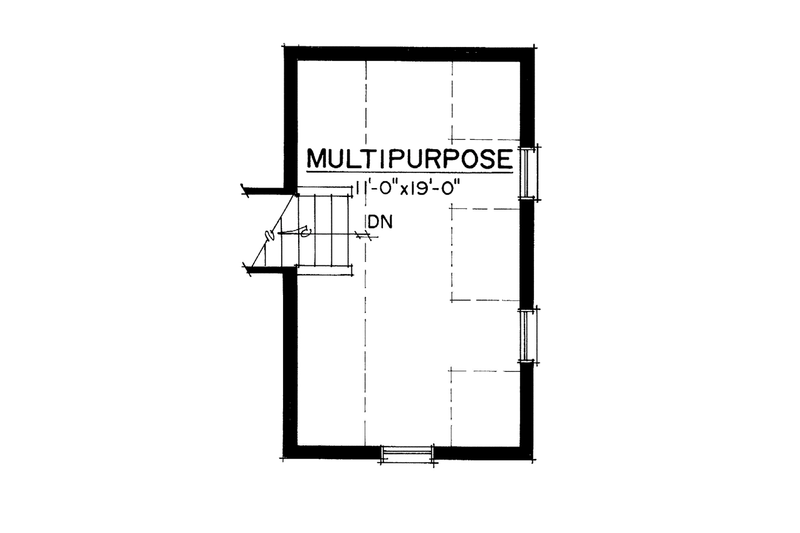

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 40'

Height : 20' 6"

Width : 26' 8"

Area

First Floor: 222 sq/ft height 8'

Garage: 687 sq/ft height 8'

Second Floor: 240 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 11:12

Roof Framing : Conventional

Roof Type : Composition

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Guest Suite

Additional Room Features

Storage Area

Workshop

Garage Features

Front Entry Garage

Side Entry Garage

Rooms

Garage:

width 21' 10" x depth 19' 8"

Garage 2:

width 11' x depth 19' 6"

Multipurpose Room:

width 11' x depth 19'

Workshop:

width 10' 8" x depth 13' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
