PLAN 513-2235
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description
Step inside to discover a cozy living area with a total of 627 sq ft and 2 bedrooms and a full bathroom. The kitchen is compact yet efficient. Whether you're seeking a weekend getaway or a cozy year-round residence, this charming cottage is sure to steal your heart with its timeless appeal.
Floor Plans

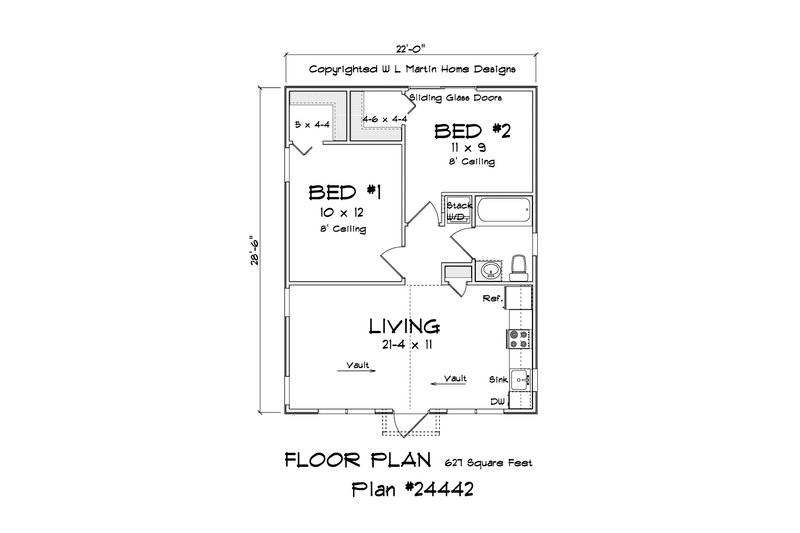

Floor Plan - Main Floor
Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 28' 6"
Height : 15' 11"
Width : 22'
Area
Main Floor : 627 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Bedroom Features
Main Floor Bedrooms
Kitchen Features
Walk In Pantry Cabinet Pantry
Additional Room Features
Main Floor Laundry
Lot Characteristics
Suited For Narrow Lot
More
Economical To Build
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
