PLAN 45-421
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description
At 569 sq. ft., the compact design of this petite retreat offers everything you need when it's time to get away. A deep front porch provides a welcoming space to commune with nature. Inside the front door, an open kitchen, dining, and living room is a good place to spend time after the sun goes down or when the weather turns cool. The master bedroom at the rear of the home is appointed with plenty of storage space and is served by a utility room and bath.
Floor Plans

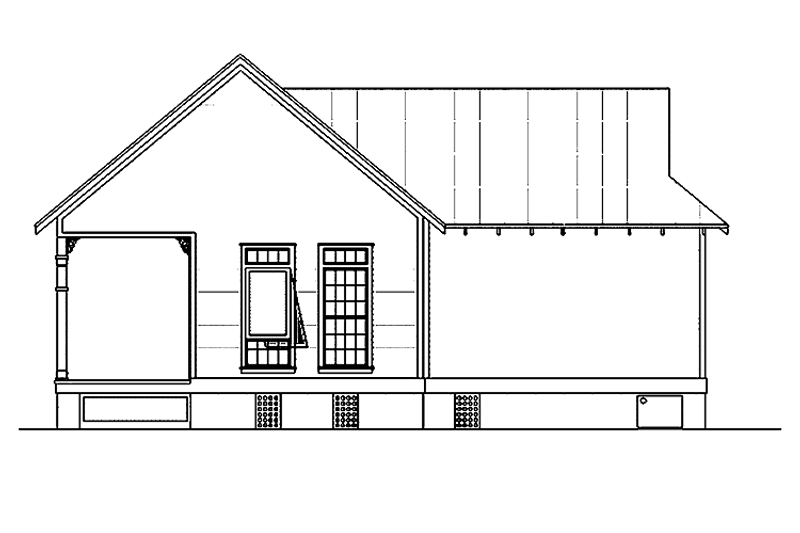

Floor Plan - Other Floor

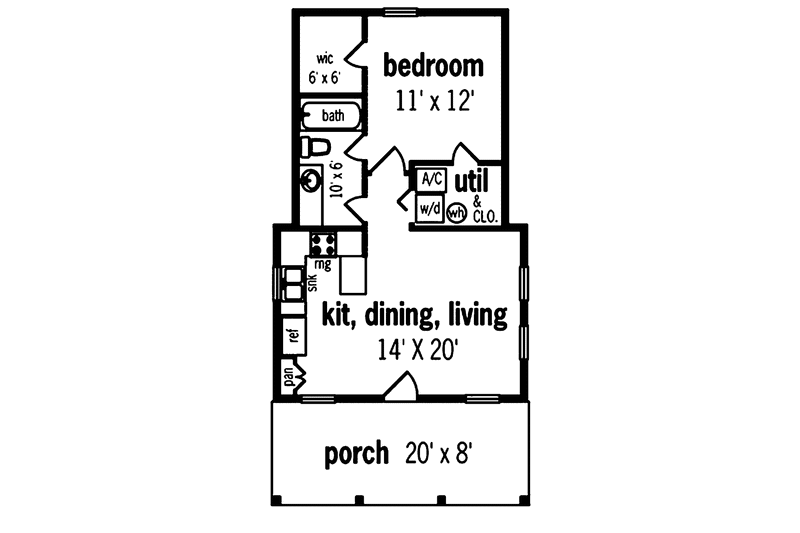

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 39'
Height : 20'
Width : 20'
Area
First Floor: 569 sq/ft height 9'
Porch: 160 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Rooms
Bathroom 1:
60 sq/ft width 10' x depth 6'
Bedroom 1:
132 sq/ft width 11' x depth 12'
Family Room:
280 sq/ft width 14' x depth 20'
Porch - Front:
160 sq/ft width 20' x depth 8'
Walk-In Closet:
36 sq/ft width 6' x depth 6'
What's Included In This Plan Set
- Information Cover Sheet
- Foundation Plan: Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
- Detailed Floor Plans: Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
- Exterior Views
- Building Sections & Interior Elevations
- Complete Construction Details
- Complete Specifications: Specifications list the types of materials used in the construction of the home. Finish schedules are provided.
Questions? Call 1-877-803-2251
Plan Set
PDF Set:
$770.00
$770.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$900.00
$900.00
5 printed plan sets mailed to you.
8 Copy Set:
$1010.00
$1010.00
8 printed plan sets mailed to you.
5 Copy and PDF Set:
$1025.00
$1025.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1340.00
$1340.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$150.00
$150.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$150.00
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$45.00
$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$100.00
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$75.00
$75.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
