PLAN 1074-109

Home > Style > Southern

Key Specs

4954
sq ft

5
Beds

3.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.

Modify This Plan

Plan Description

This southern design floor plan is 4954 sq ft including the upstairs bonus room and has 5 bedrooms and 3.5 bathrooms.

Floor Plans

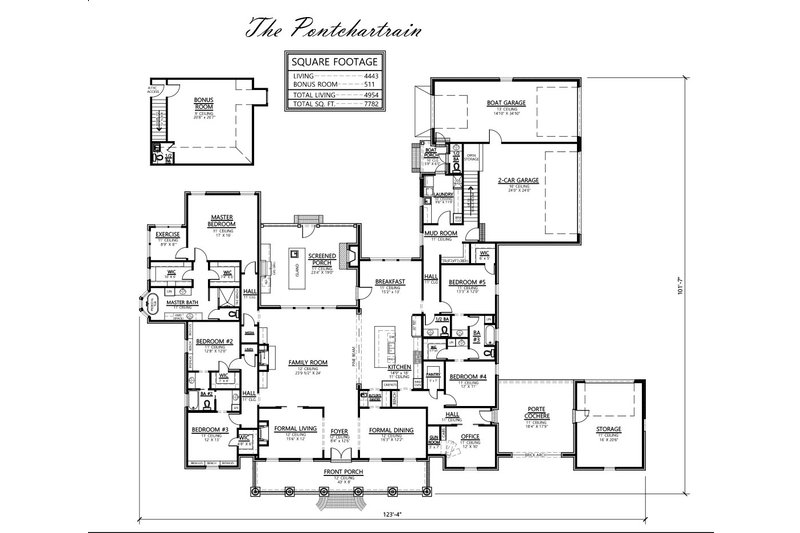

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 101' 7"

Height : 36'

Width : 123' 4"

Area

Bonus : 511 sq/ft

Garage : 1224 sq/ft

Main Floor : 4443 sq/ft

Porch : 1218 sq/ft

Storage : 386 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 9'

Garage Ceiling : 10'

Main Ceiling : 11'

Roof

Primary Pitch : 12:20

Roof Framing : stick

Roof Type : shingles

Secondary Pitch : 12:16

Exterior Wall Framing

Exterior Wall Finish : brick

Framing : 2X6

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Exercise Room

Family Room Keeping Room

Main Floor Laundry

Media Room

Mud Room

Storage Area

Garage Features

Carport Porte Cochere

Rear Garage

Split Garage

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

Screened Porch

Additional Half Bath

Jack & Jill Bath

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-803-2251

Plan Set

PDF Set:
$2195.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Unlimited Build:
$2895.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$3695.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Crawlspace:
$175.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$225.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$495.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$395.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
