Plan Description
This is the Lotus Bend design, and it's prepped to become the perfect living space! An eye catching wooden front porch, wood fireplace, a striking patio, and tons of space set this design apart. Inside, you’ll find a large primary suite, office space, and an open rec room. You will also find two bedrooms, each with their own bathroom, and a half bath under the stairs. The open concept living room, dining room, and kitchen will bring your family or friends together for countless hours of quality time and laughter. Designed for use as a PEMB (Pre-engineered Metal Building) This Metal House Plan will typically be built using Z8 metal core and steel columns with insulated metal sheeting on the exterior and 2X4" studs for the interior walls. The exterior walls are usually assembled offsite and delivered to the build location. A PEMB can often be built much faster than using traditional framing, but if that isn't an option for you; the plan is also available using traditional 2x6" wood framing.
Floor Plans

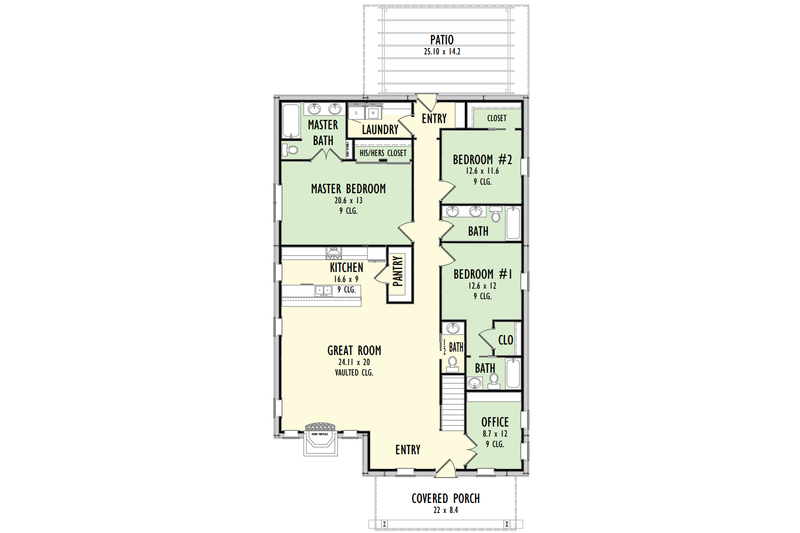

Floor Plan - Main Floor

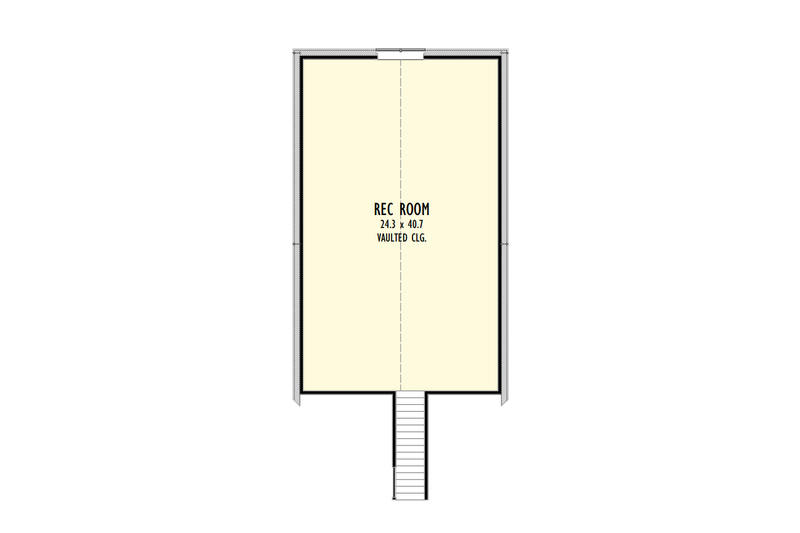

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 82' 6"
Height : 23' 6"
Width : 40'
Area
Main Floor : 2316 sq/ft
Patios : 366 sq/ft
Porch : 183 sq/ft
Upper Floor : 1400 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 6/12
Roof Framing : PEMB and Stick
Roof Type : Metal
Secondary Pitch : 2/12
Exterior Wall Framing
Exterior Wall Finish : Metal
Framing : Z8 and 2x4
Bedroom Features
Main Floor Master Bedroom
Kitchen Features
Eating Bar
Additional Room Features
Den Office Study Computer
Play Flex Room
Outdoor Spaces
Covered Front Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-877-803-2251
Plan Set
PDF Set:
$1400.00
$1400.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Metal (PEMB):
$0.00
$0.00
Designed for use as a PEMB (Pre-Engineered Metal Building) using Z8 metal framing with insulated panels on the exterior and 2x4" studs for the interior.
Wood 2x6:
$316.00
$316.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$200.00
$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$132.00
$132.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$31.20
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$132.00
$132.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Unlimited Use License:
$1800.00
$1800.00
Allows you to build this home as many times as you want.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
