Key Specs
3620
sq ft
3
Beds
3.5
Baths
2
Floors
4
Garages
Phone: 1-877-803-2251
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 70-1143
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description

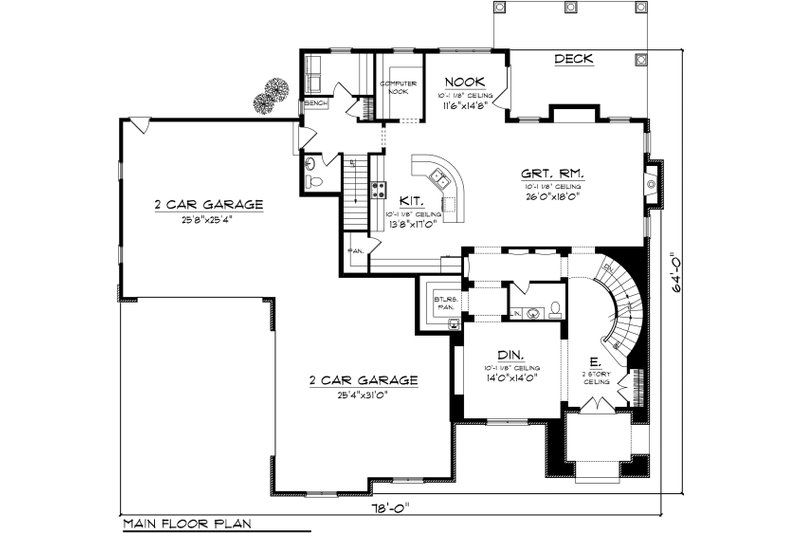

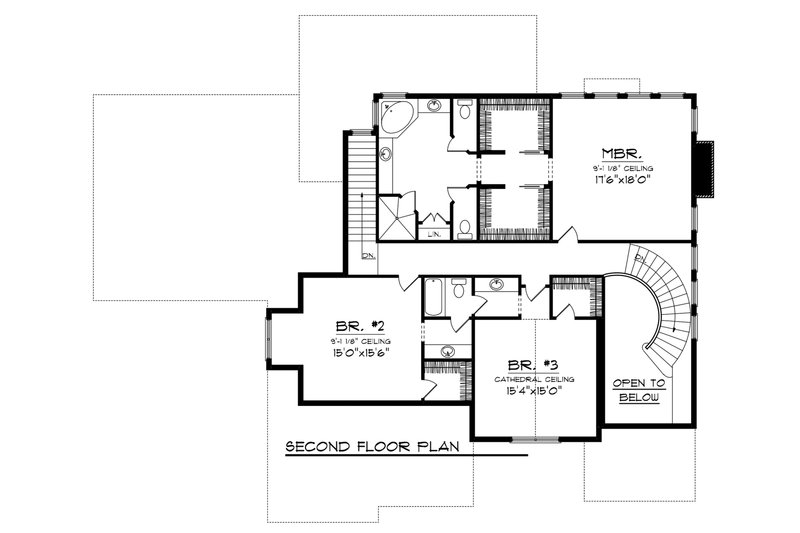

Floor Plans
Full Specs & Features
Dimension
Depth : 64'
Height : 33' 11"
Width : 78'
Area
First Floor: 2010 sq/ft height 10' 1"
Garage: 1475 sq/ft
Second Floor: 1610 sq/ft height 9' 1"
Ceiling
Ceiling Details : 10'. Entry 2-Story, Bdrm #3 Cath
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Stucco, Stone, Siding
Framing : 2x6
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Unfinished Future Space
Garage Features
Split Garage
More
Jack & Jill Bath
Rooms
Bedroom 2:
width 15' x depth 15' 6"
Bedroom 3:
width 15' 4" x depth 15'
Breakfast Nook:
width 11' 6" x depth 14' 8"
Dining Room:
width 14' x depth 14'
Garage 1:
width 25' 4" x depth 31'
Garage 2:
width 25' 8" x depth 25' 4"
Great Room:
width 26' x depth 18'
Kitchen:
width 13' 8" x depth 17'
Master Bedroom:
width 17' 6" x depth 18'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1384.65
$1446.70
$1785.00
$1785.00
$2861.95
Foundation
$0.00
$335.75
$335.75
Additional Options
$335.75
$68.00
$85.00
$335.75
$33.15
$63.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
