Key Specs
3426
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-877-803-2251
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1058-232
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 48'
Height : 30' 3"
Width : 65' 4"
Area
Garage : 468 sq/ft
Main Floor : 1678 sq/ft
Patios : 376 sq/ft
Porch : 191 sq/ft
Upper Floor : 1748 sq/ft
Ceiling
Garage Ceiling : 10'
Main Ceiling : 10'
Upper Ceiling Ft : 10'
Roof
Primary Pitch : 5/12
Roof Framing : Truss
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Stucco/ Siding
Framing : CMU, 2x6 Frame
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Play Flex Room
Upstairs Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
More
Additional Half Bath
Economical To Build
Suited For Vacation Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

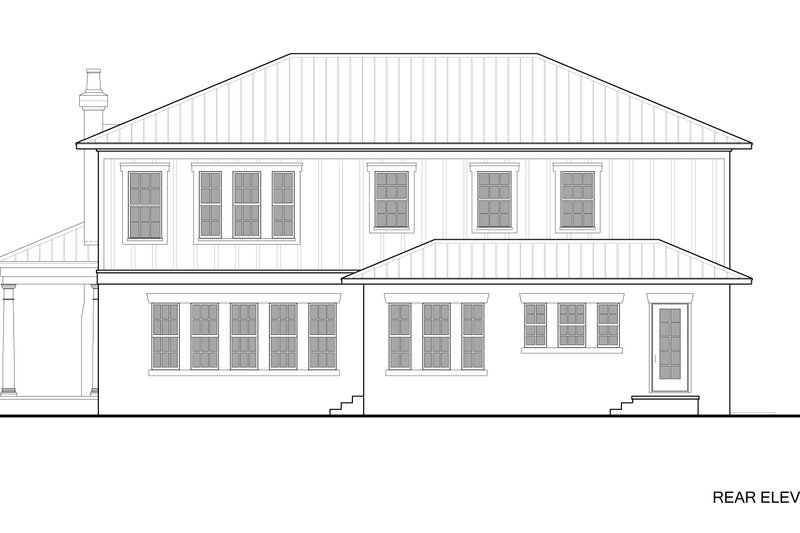

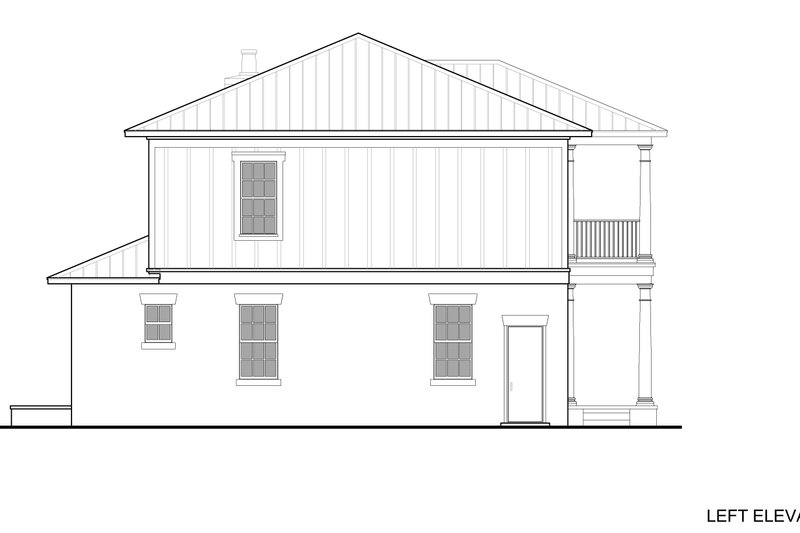

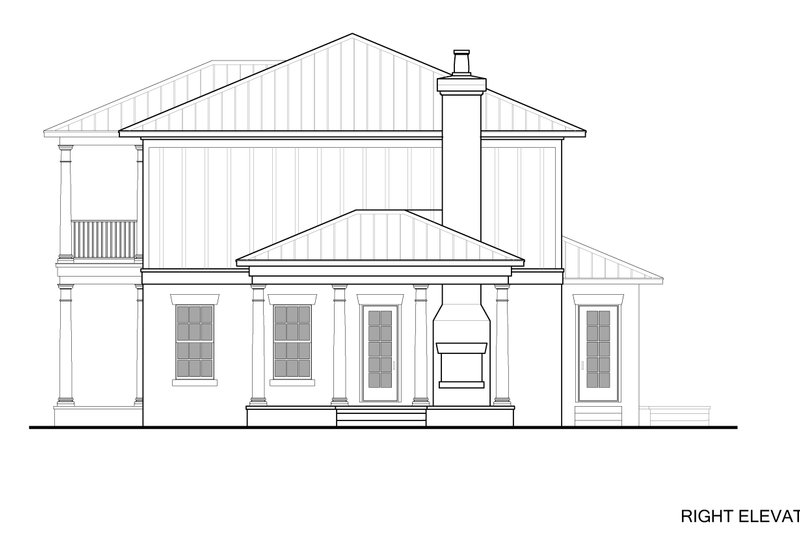

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

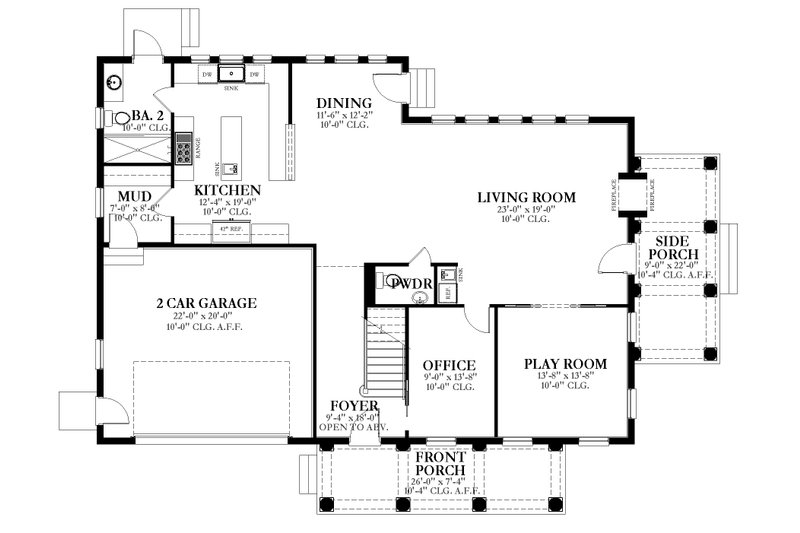

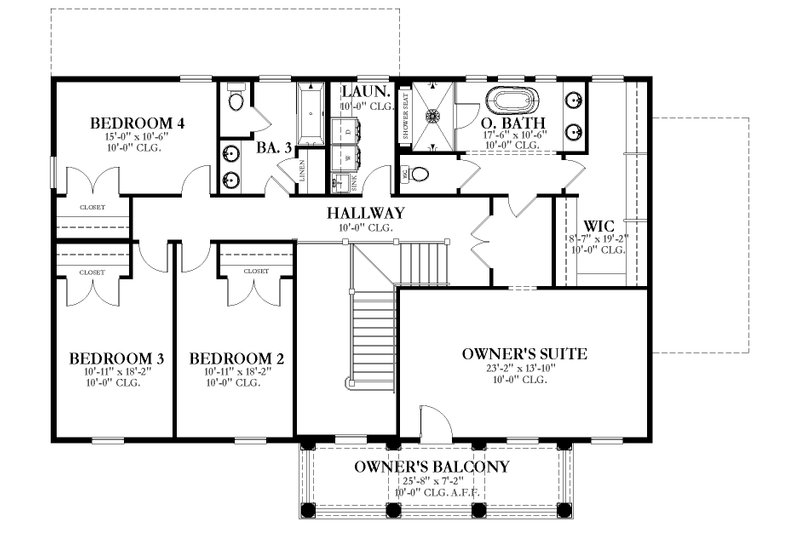

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$3100.00
$3250.00
$3500.00
Foundation
$0.00
Framing
$0.00
Additional Options
$300.00
$50.00
$1750.00
$17500.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
