Key Specs
3288
sq ft
3
Beds
2.5
Baths
1
Floors
3
Garages
Phone: 1-877-803-2251
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 52-243
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description

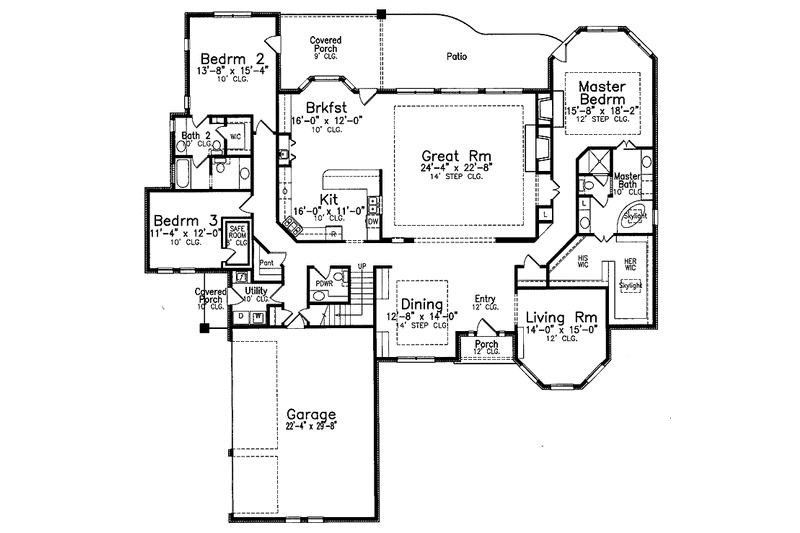

Floor Plans
Full Specs & Features
Dimension
Depth : 79'
Height : 29' 2"
Width : 80'
Area
First Floor: 3288 sq/ft
Porch: 690 sq/ft
Roof
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Additional Room Features
Great Room Living Room
Outdoor Spaces
Courtyard
Covered Rear Porch
Rooms
Bedroom 2:
209 sq/ft width 13' 8" x depth 15' 4"
Bedroom 3:
135 sq/ft width 11' 4" x depth 12'
Breakfast:
192 sq/ft width 16' x depth 12'
Dining Room:
177 sq/ft width 12' 8" x depth 14'
Garage:
655 sq/ft width 22' 1" x depth 29' 8"
Great Room:
551 sq/ft width 24' 4" x depth 22' 8"
Kitchen:
176 sq/ft width 16' x depth 11'
Living Room:
210 sq/ft width 14' x depth 15'
Master Bedroom:
284 sq/ft width 15' 8" x depth 18' 2"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$919.00
$1065.00
$1065.00
$751.00
Foundation
$0.00
Framing
$0.00
Additional Options
$60.00
$100.00
$39.00
$200.00
$55.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
