PLAN 119-257

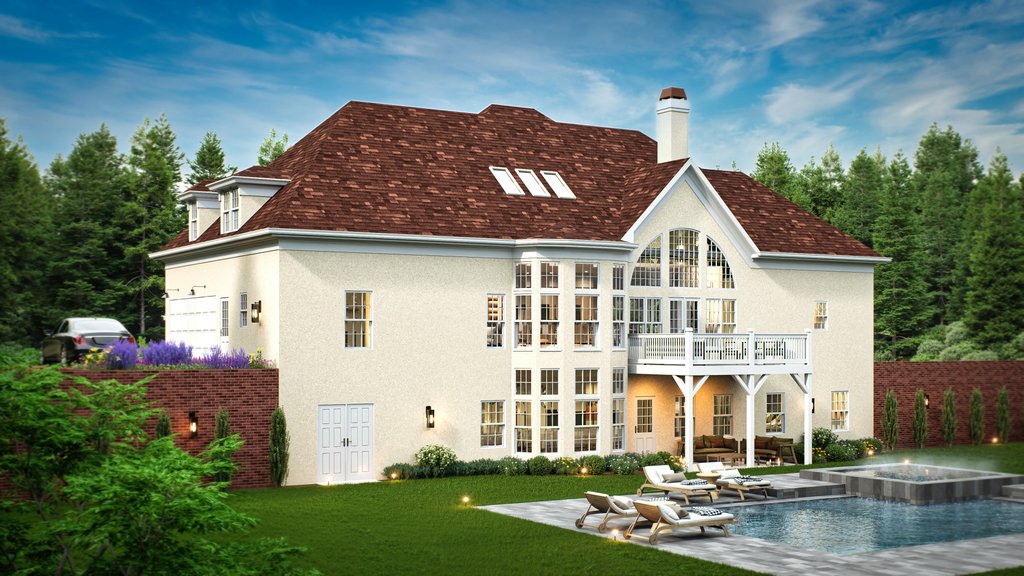

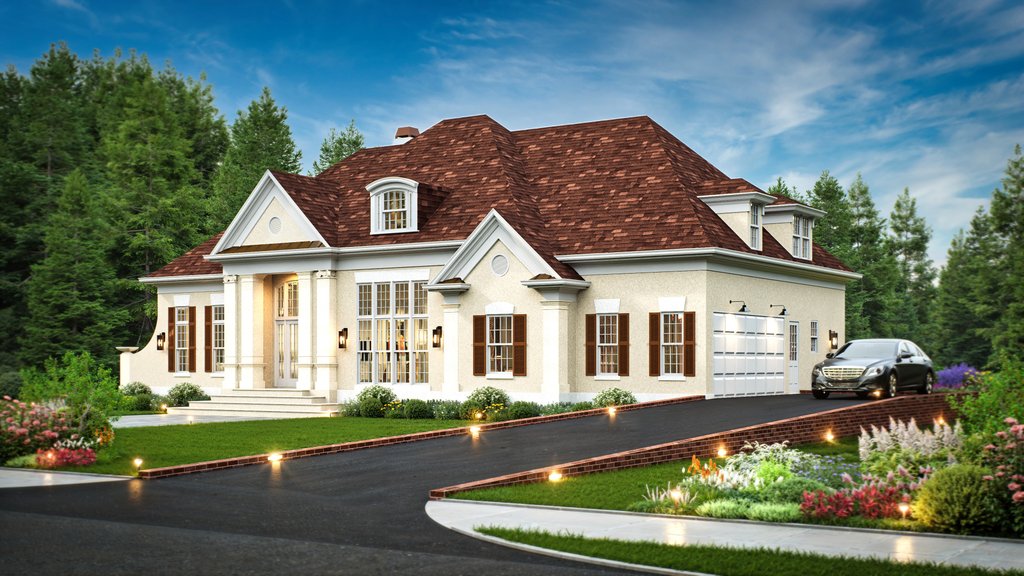

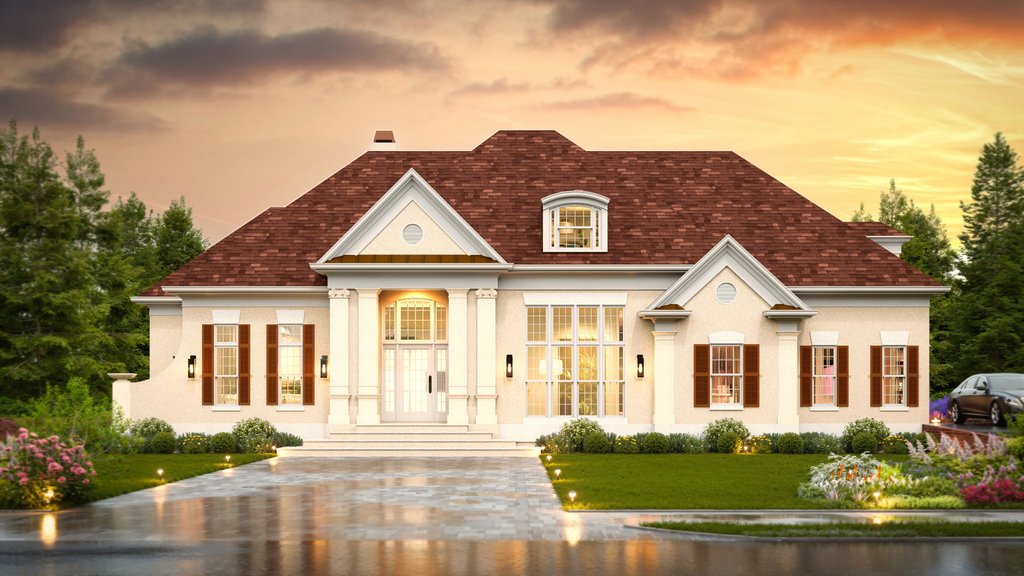

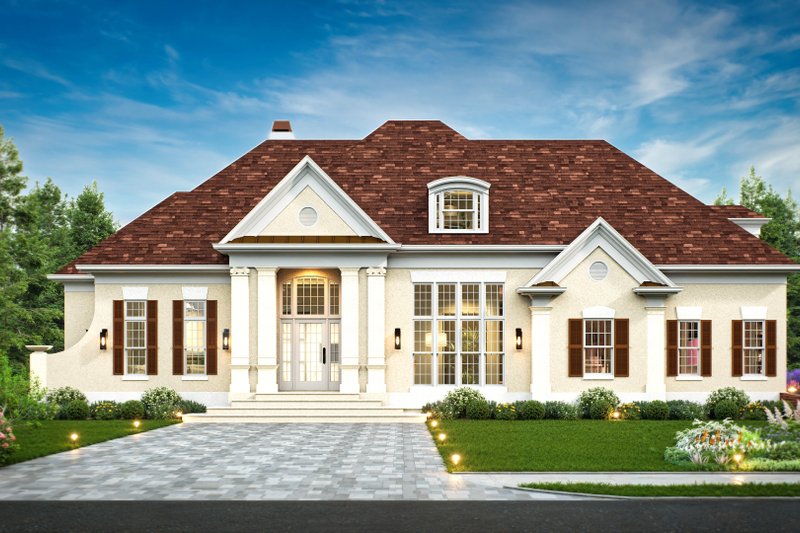

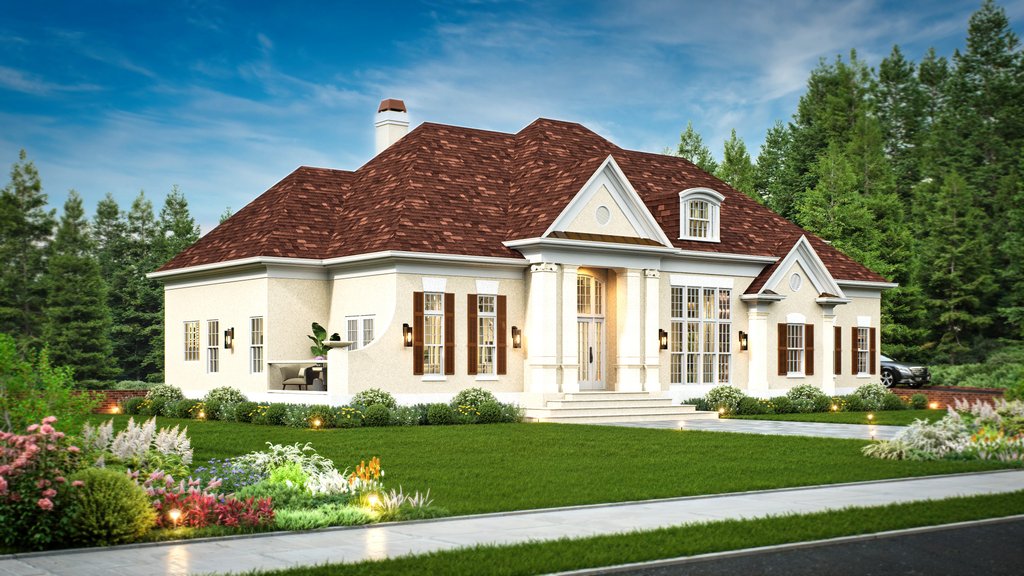

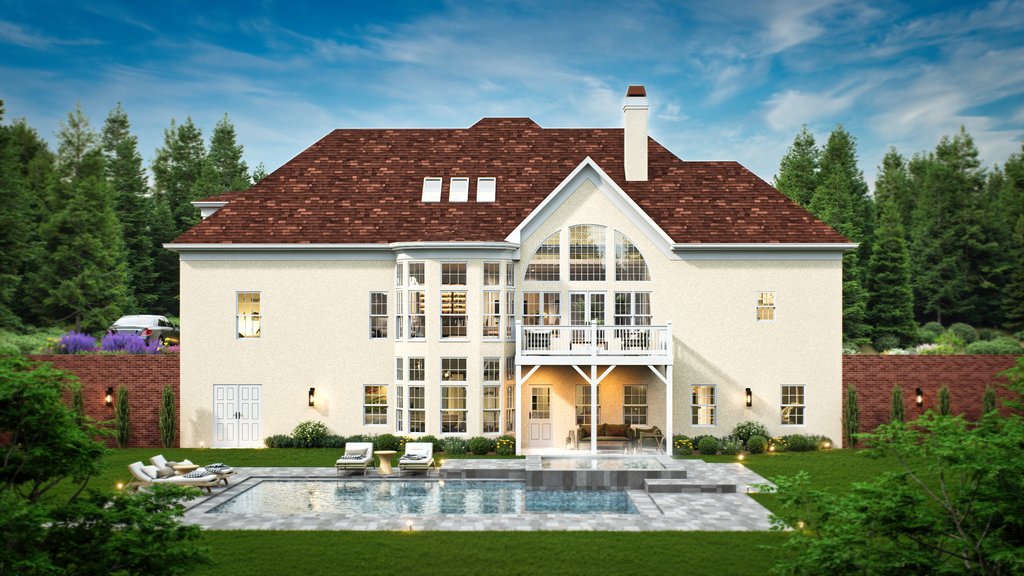

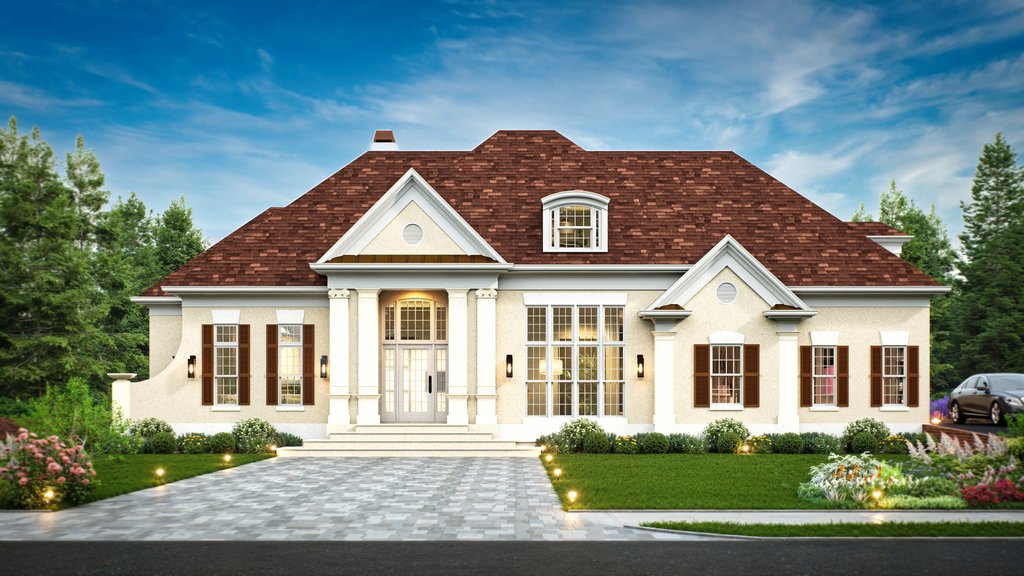

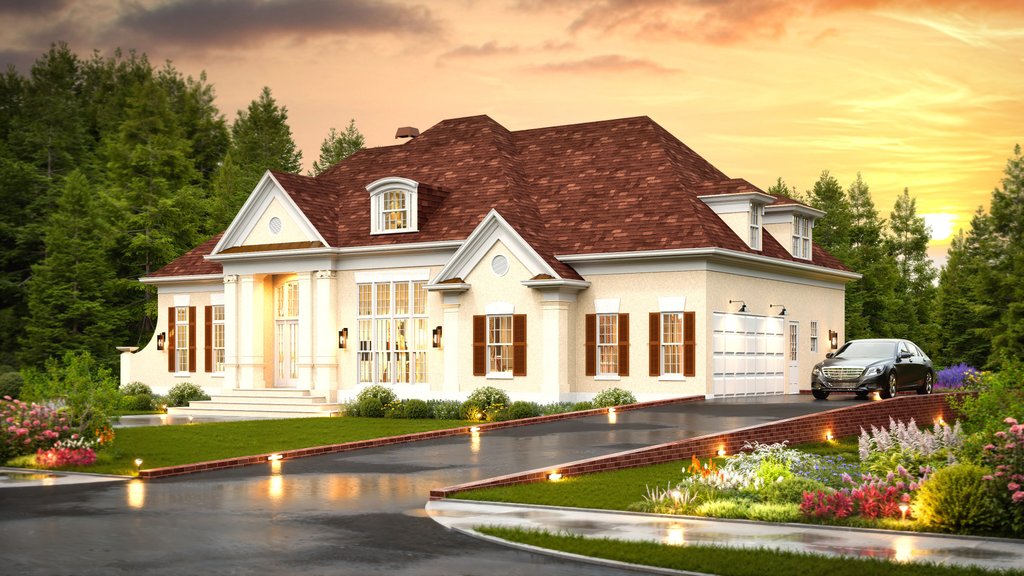

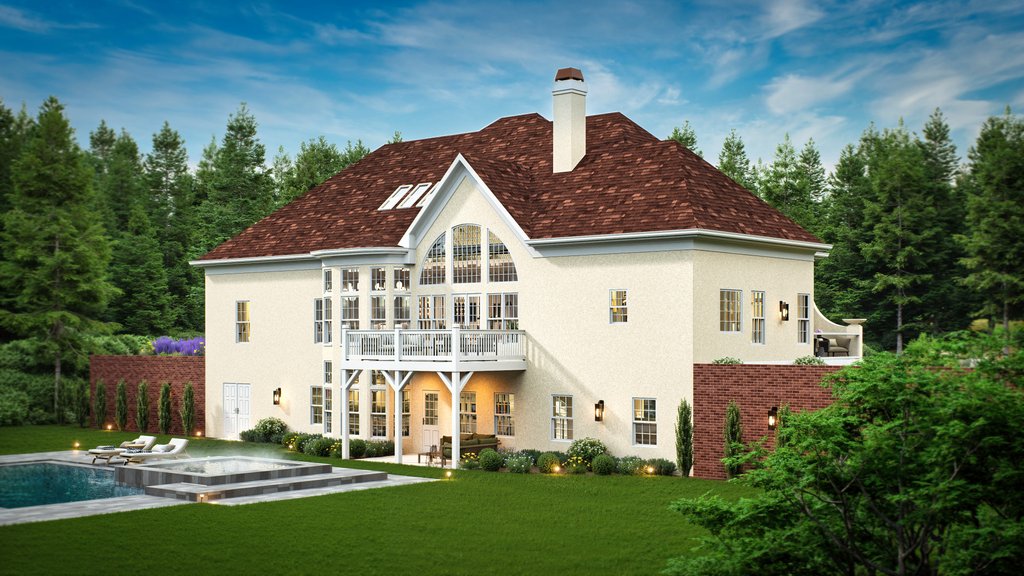

Photographs may show modified designs.
- Jump to:
- All (7)
- Floor plans (3)
Get Personalized Help
Get Cost-To-Build Report
Modify This Plan
Key Specs
2832
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-877-803-2251
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 119-257
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description
Floor Plans
Floor Plan - Main Floor
Floor Plan - Lower Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 40'
Height : 28'
Width : 70'
Area
First Floor: 1920 sq/ft height 9'
Second Floor: 912 sq/ft height 8'
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Loft
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
More
Jack & Jill Bath
Rooms
Bedroom 3:
231 sq/ft width 18' 6" x depth 12' 6"
Bedroom 4:
176 sq/ft width 16' x depth 11'
Breakfast Room:
96 sq/ft width 12' x depth 8'
Dining Room:
156 sq/ft width 12' x depth 13'
Foyer:
165 sq/ft width 15' x depth 11'
Front Deck:
66 sq/ft width 6' x depth 11'
Garage:
535 sq/ft width 25' x depth 21'
Great Room:
323 sq/ft width 17' x depth 19'
Guest Bath:
32 sq/ft width 4' x depth 8'
Guest Closet:
16 sq/ft width 4' x depth 4'
Guest Suite:
144 sq/ft width 12' x depth 12'
Kitchen:
156 sq/ft width 12' x depth 13'
Laundry:
54 sq/ft width 9' x depth 6'
Library Loft:
166 sq/ft width 12' 4" x depth 13' 6"
Master Bath:
108 sq/ft width 12' x depth 9'
Master Bedroom:
221 sq/ft width 17' x depth 13'
Master Suite:
221 sq/ft width 17' x depth 13'
Master Walk-In Closet:
81 sq/ft width 9' x depth 9'
Rear Deck:
150 sq/ft width 15' x depth 10'
Study:
143 sq/ft width 13' x depth 11'
What's Included In This Plan Set
- Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
- Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
- First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
- Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
- Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
- Second Floor Lighting: The same details as provided for the first floor.
- Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
- Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
- Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
- Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
- Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
- General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
Plan Set
$1036.00
$1380.00
$1460.00
$1676.00
Foundation
$0.00
Additional Options
$160.00
$132.00
$236.00
$31.20
$132.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
