PLAN 406-101
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description
This southern design floor plan is 2475 sq ft and has 3 bedrooms and 2.5 bathrooms.
Floor Plans

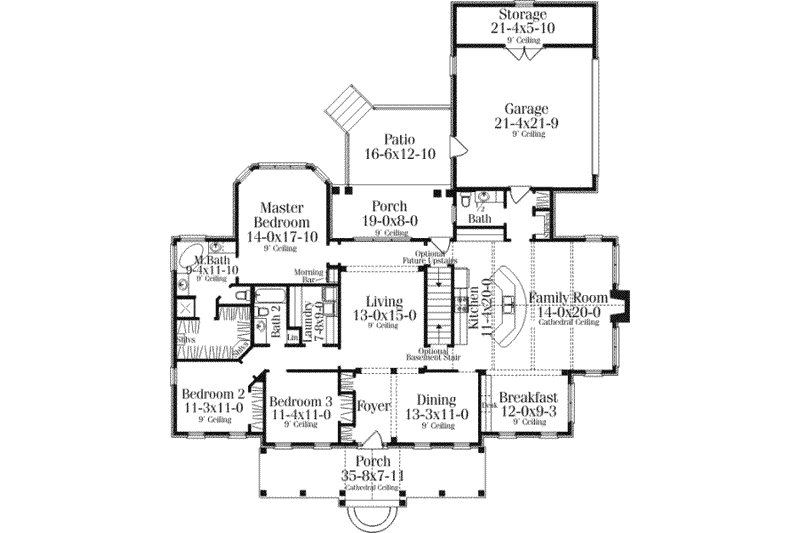

Floor Plan - Main Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 78' 11"
Height : 29'
Width : 70'
Area
Bonus: 923 sq/ft
First Floor: 2475 sq/ft height 9'
Garage: 674 sq/ft
Porch: 412 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Family Room Keeping Room
Master Sitting Area
Storage Area
Unfinished Future Space
Garage Features
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
- The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
- The second sheet is typically the front and side elevation drawn to 1/4" scale.
- The third sheet is the rear and side elevation drawn to 1/4" scale.
- The foundation of your choice (slab or crawlspace ). Floor Plan 1/4" Scale
- Detail and Section Page
- Cabinet elevations & Roof Plan
- Electrical Plan
- Foundation Details
