PLAN 40-384

Home > Style > Tudor House Plans

Key Specs

2050
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.

Modify This Plan

Plan Description

This tudor design floor plan is 2050 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

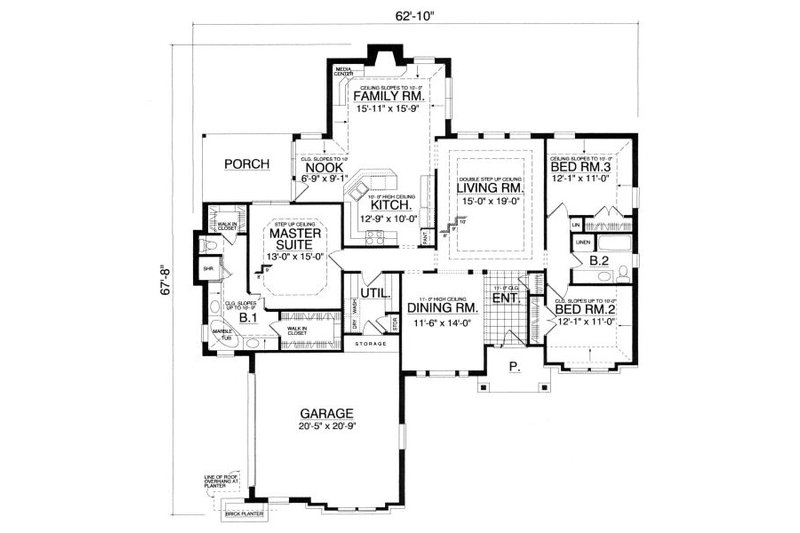

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 67' 8"

Height : 24' 2"

Width : 62' 10"

Area

First Floor: 2050 sq/ft

Garage: 491 sq/ft

Porch: 159 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : 2"x4"

Rooms

Bedroom 2:

132 sq/ft width 12' 1" x depth 11'

Bedroom 3:

132 sq/ft width 12' 1" x depth 11'

Dining Room:

161 sq/ft width 11' 6" x depth 14'

Family Room:

250 sq/ft width 15' 11" x depth 15' 9"

Garage:

423 sq/ft width 20' 5" x depth 20' 9"

Kitchen:

127 sq/ft width 12' 9" x depth 10'

Living Room:

285 sq/ft width 15' x depth 19'

Master Suite:

195 sq/ft width 13' x depth 15'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
