PLAN 1017-80

Home > Style > Mediterranean House Plans

Key Specs

1758
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.

Modify This Plan

Plan Description

This mediterranean design floor plan is 1758 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

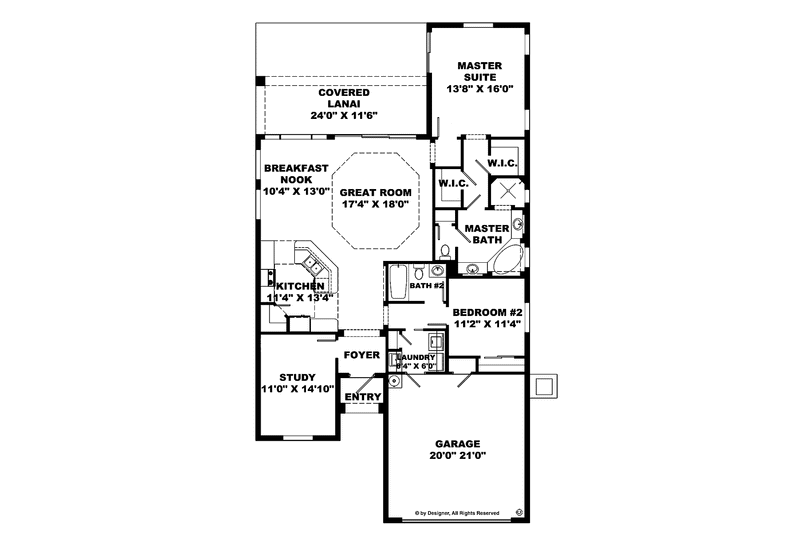

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Other Floor

Full Specs & Features

Dimension

Depth : 73'

Height : 21' 5"

Width : 40'

Area

First Floor: 1758 sq/ft

Garage: 471 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Fireplace

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Additional Room Features

Den Office Study Computer

Great Room Living Room

Outdoor Spaces

Covered Rear Porch

Rooms

Bedroom 2:

126 sq/ft width 11' 2" x depth 11' 4"

Breakfast Nook:

134 sq/ft width 10' 4" x depth 13'

Garage:

420 sq/ft width 20' x depth 21'

Great Room:

311 sq/ft width 17' 4" x depth 18'

Kitchen:

151 sq/ft width 11' 4" x depth 13' 4"

Laundry Room:

49 sq/ft width 8' 4" x depth 6'

Master Bedroom:

218 sq/ft width 13' 8" x depth 16'

Porch - Rear:

276 sq/ft width 24' x depth 11' 6"

Study:

163 sq/ft width 11' x depth 14' 10"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-803-2251

Plan Set

CAD Set:
$1000.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1000.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1000.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$90.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
