Plan Description

Great plan for living on a budget, or weekend getaway, this plan features 4 bedrooms & family style dining. A carport or garage can be added to the side next to the kitchen.

Floor Plans

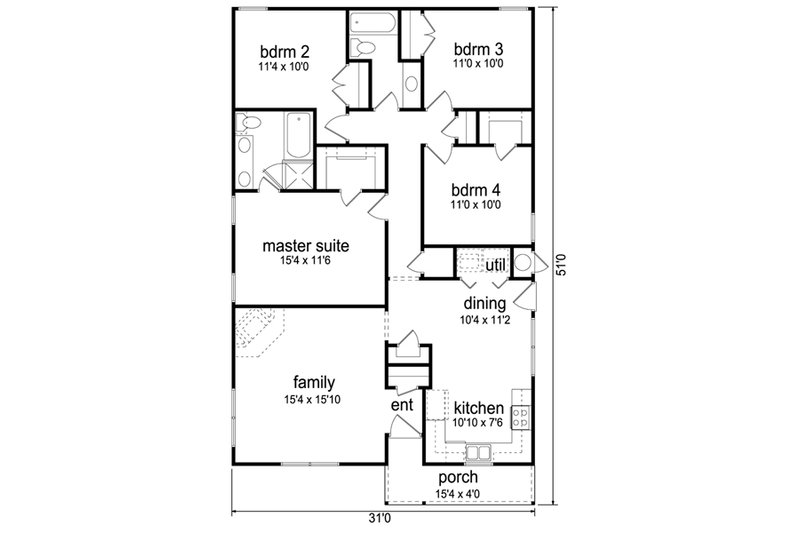

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 51'

Height : 17'

Width : 31'

Area

First Floor: 1446 sq/ft height 9'

Porch: 72 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 6:12

Roof Framing : stick

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Main Floor Laundry

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Economical To Build

Code Compliance

Irc 2003

Rooms

Bedroom 2:

113 sq/ft width 11' 4" x depth 10'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Dining Room:

115 sq/ft width 10' 4" x depth 11' 2"

Family Room:

242 sq/ft width 15' 4" x depth 15' 10"

Kitchen:

81 sq/ft width 10' 10" x depth 7' 6"

Master Suite:

176 sq/ft width 15' 4" x depth 11' 6"

What's Included In This Plan Set

See a sample plan set

FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
FRONT RENDERING: 1/4" Scale
FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

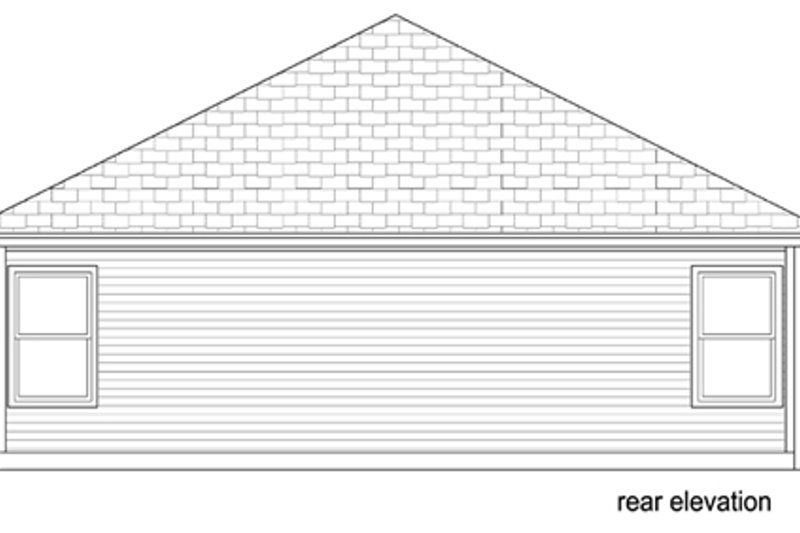

ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
