Plan Description
This ranch design floor plan is 1089 sq ft and has 3 bedrooms and 2 bathrooms.
Floor Plans

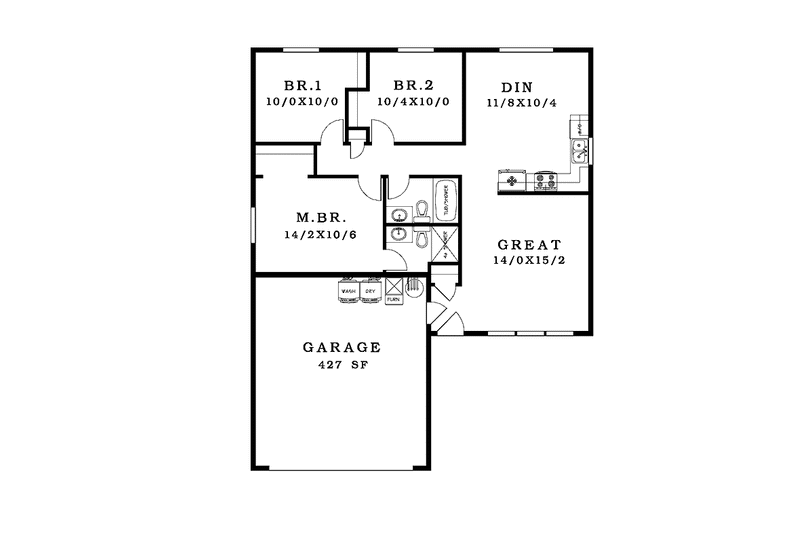

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 47'
Height : 20' 1"
Width : 38'
Area
First Floor: 1089 sq/ft height 8'
Garage: 427 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Kitchen Features
Breakfast Nook
Additional Room Features
Great Room Living Room
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 1:
100 sq/ft width 10' x depth 10'
Bedroom 2:
103 sq/ft width 10' 4" x depth 10'
Dining Room:
120 sq/ft width 11' 8" x depth 10' 4"
Great Room:
212 sq/ft width 14' x depth 15' 2"
Master Bedroom:
148 sq/ft width 14' 2" x depth 10' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
» See important
information before purchasing.
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

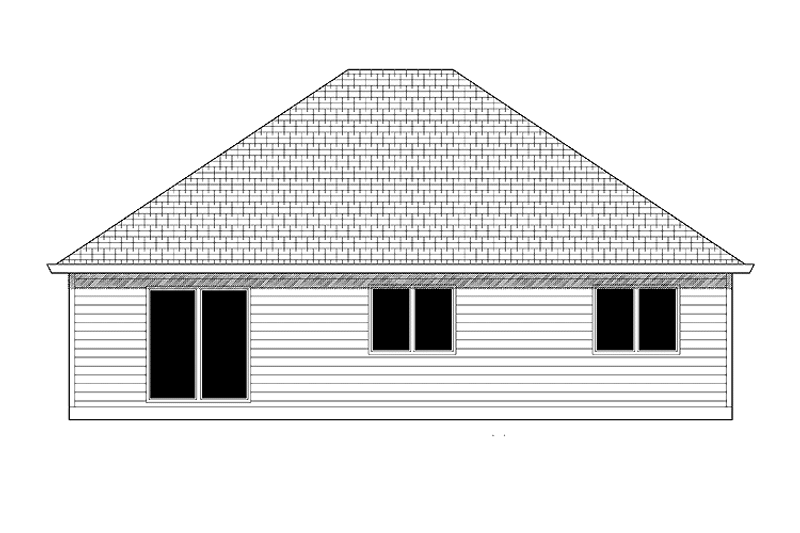

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
